环境温度

Ambient temperature

℃

-25~50

额定电流

Rated current

A

0.6

最大电流

Maximum current

A

0.68

额定电阻

Rated resistance

Ω

40

额定行程

Rated stroke

mm

9

全行程

Full stroke

mm

10

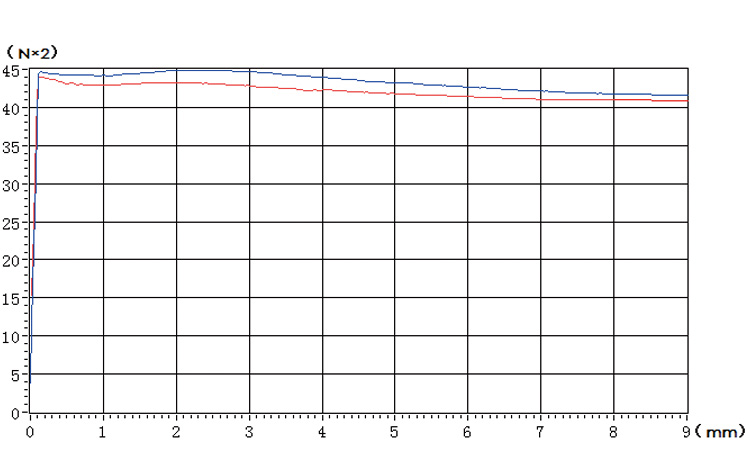

额定推力

Rated thrust

N

90

力滞环

Force hysteresis

%

≤4

电流滞环

Current hysteresis

%

≤4

重复精度

Repetition accuracy

%

≤1

工作油压

Working oil pressure

MPa

≤21

防护等级

Degree of protection

IP65

通电持续率

Power on duration

%

100

绝缘等级

Insulation class

H(180)

电气连接方式

Electrical connection mode

DIN43650
