• Boye hydraulic, Byz DC wet valve electromagnet, as the key electromagnetic driving element of hydraulic solenoid valve, is widely used in automatic control system.
• The technical standard is designed and produced in strict accordance with jbt5244 / vde0580.
• It adopts high-quality magnetic conducting material with large output force to ensure the stable and reliable operation of the solenoid valve.
• A variety of standard connection modes are provided, and the enclosure protection grade is ip65-ip69k, which can meet the environmental needs of different fields.
• It adopts high-quality H-class enamelled wire and insulating material, and fully plastic sealed coil structure, which is firm and durable, fast heat dissipation, and will not burn even if it is used for a long time.
• Rated working pressure of magnetic guide sleeve ≤ 21MPa, limit pressure ≥ 31.5Mpa, burst pressure ≥ 63Mpa.
• Mechanical life > 10 million times, pulse fatigue life > 2 million times
• Surface treatment: blue white zinc
• If the standard products can not meet your needs, you can contact our company. If there are other special requirements, you can customize them. Welcome to consult.

•
  BYZ02-3C-01G
•
  BYZ02-55-01G
•

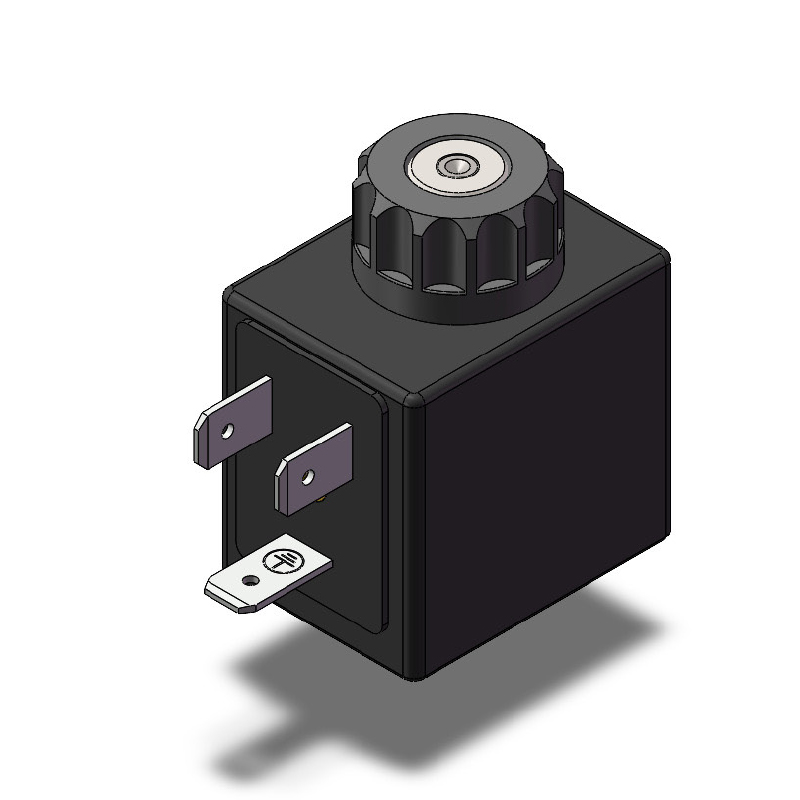

  BYZ03-13-01G
•

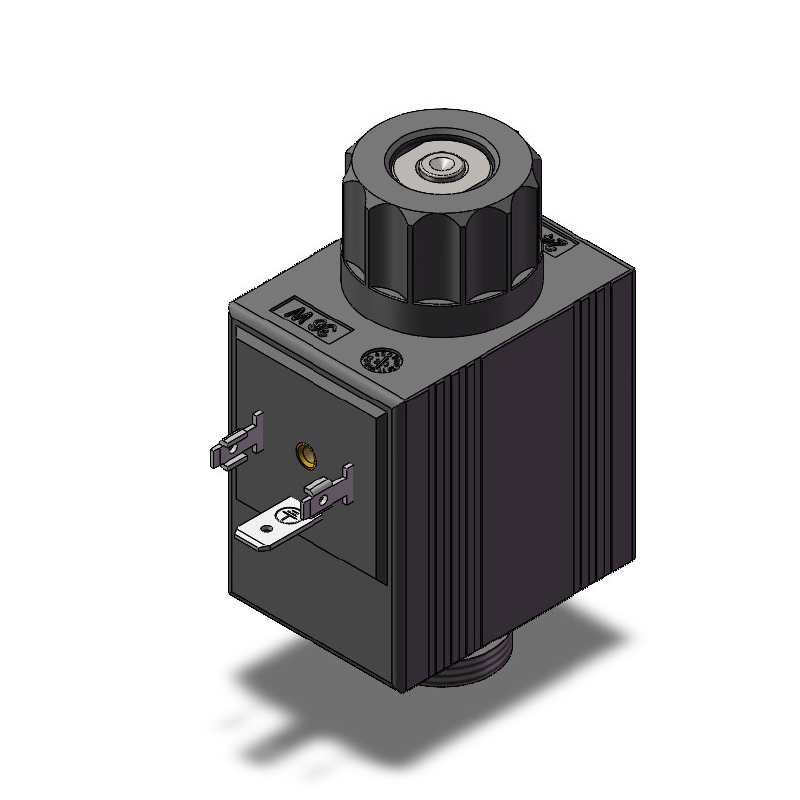

  BYZ03-16-01G
•
  BYZ08-30-01G
•
  BYZ09-120-01A
•
  BYZ09-120-01G
•
  BYZ09-120A-01D
•
  BYZ09-120A-01G
•
  BYZ09-120L-01G
•
  BYZ09-15-02G
•
  BYZ09-15-03L
