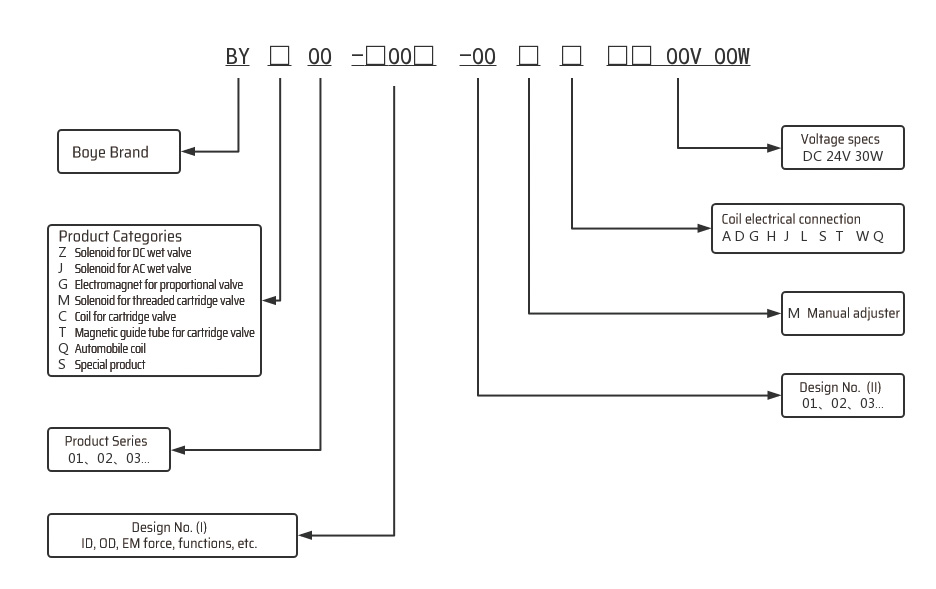

Product Selection Guide

Code	Power form	Electrical schematic diagram
DC	DC input
DC/S	Built-in bidirectional diode
DC/D	Built-in unidirectional diode
AC	AC input
BC	Built in half wave rectifier circuit
RC	Built in full wave rectifier circuit
RAC	External half-wave rectified input
BAC	External half-wave rectified input

Electrical connection form and protection level
Code name	name	Connector model	Protection level
A	Double Round A-pillar CA (Box type)	double-cylinder (Special connector for wirebox)	IP65
D	Double round pin (Dechi type)	Deutsch DT04-2P	IP69K
G	Three plug piece	DIN 43650/ISO 4400(2P+E)	IP65
H	Cable type	φ5.5-0.75mm²×2	IP67-IP69K
J	Double plug (Anpu type)	AMP Junior Timer	IP67-IP69K
K	Double cylinder Threaded type	Kostal-M24/M27	IP65
L	Lead type	Double lead	IP67-IP69K
L+*	Lead connector combination	Dual leads+connector	IP65-IP69K
P	Anpu type	AMP superseal 1.5	IP67
M	Double flat pins (Delphi type)	Delphi_Metri-Pack 150.2	IP69K
S	Double plug	Dual spade	IP65
Y	Double flat pins	Delphi_Metri_Pack_150	IP69K
Q	Automotive application category	Automotive application category	IP65-IP69K
T	Special customization category	Special customization category	IP65-IP69K
Other connection methods can be customized

Precautions for use

1. The coil shall not be powered on alone, which has the risk of burning!
2. The electromagnets at both ends of the solenoid valve shall not be energized at the same time!
3. The electromagnet shall not be used in the environment exceeding the rated working pressure!
4. Before using the electromagnet, confirm that the input voltage is correct and stable to avoid coil burning or failure to work!

Safety precautions

1. Non explosion-proof coil shall not be used in medium with explosion risk!
2. After the coil is installed, it must be grounded reliably, otherwise there is a risk of electric shock!
